QUICK-CHUCKS
QUICK-CHUCKS
Features
- Quick loading and unloading
- Ideal for volume label production
- Six differents diameters
- Optional Flanges available
Shipping within no - no days
Description

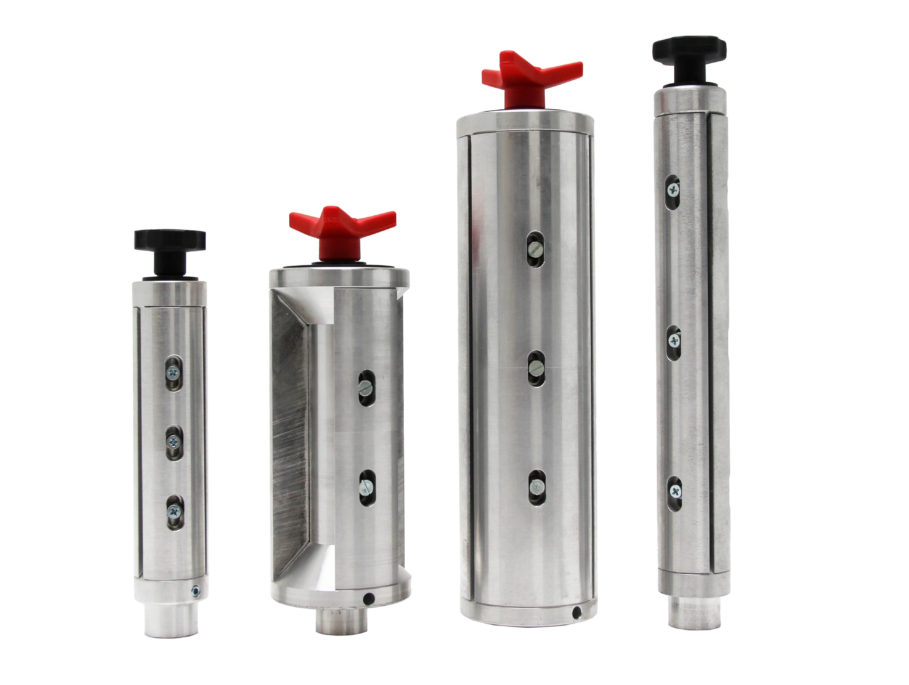

The best answer for quick loading and unloading of label rolls. Quick-Chucks permit to mount or remove a roll of labels on your Rewinder or Unwinder in seconds. They are ideal for heavy rolls, production operations or for holding multiple cores for slitting.
How to use: Slide your label roll over the Quick-Chuck and turn the convenient lock knob. Instantly the roll is locked in place. To remove the roll, just give the lock knob a quick turn to the left and pull the roll of the machine.
QUICK-CHUCK 76170 is placed by default (except on ZCAT Rewinders).
| P/N | MODEL | DIAMETER | WIDTH |
| LMX479 | C-38170 | 38 mm | 170 mm |
| LMX480 | C-40170 | 40 mm | 170 mm |
| LMX481 | C-44170 | 44 mm | 170 mm |
| LMX482 | C-70170 | 70 mm | 170 mm |
| LMX483 | C-76160 | 76 mm | 170 mm |
| LMX484 | C-76220 | 76 mm | 220 mm |
| LMX485 | C-76270 | 76 mm | 270 mm |
Related models: UNI-CAT-CHUCK, UNI-CAT-R16, UNI-CAT-XL, CAT-3-CHUCK, TWIN-CAT2-CHUCK, TWIN-MATRIX-6, TWIN-MATRIX-8, CAT-40G, ZCAT-6, ZCAT-8, ZCAT-10,SR-6, SR-10,
When ordering, please specify the chuck you need.
OPTIONAL FLANGES
| LMX506 | 220mm outer Flange for QC 76 mm core diam. |
| LMX144 | 220mm inner Flange for QC 70 & 76 mm core diam. |
| LMX507 | 220mm inner Flange for QC 38, 40 & 44 mm core diam. |
| LMX508 | 300mm outer Flange for QC 76 mm core diam. |
| LMX509 | 300mm inner Flange for QC 70 & 76 core diam. |
| LMX510 | 300mm inner Flange for QC 38, 40 & 44 mm core diam. |
| LMX511 | 400mm outer Flange for QC 76 mm core diam. |
| LMX512 | 400mm inner Flange for QC 76 mm core diam. |
| LMX513 | 400mm inner Flange for QC 38, 40 & 44 mm core diam. |
